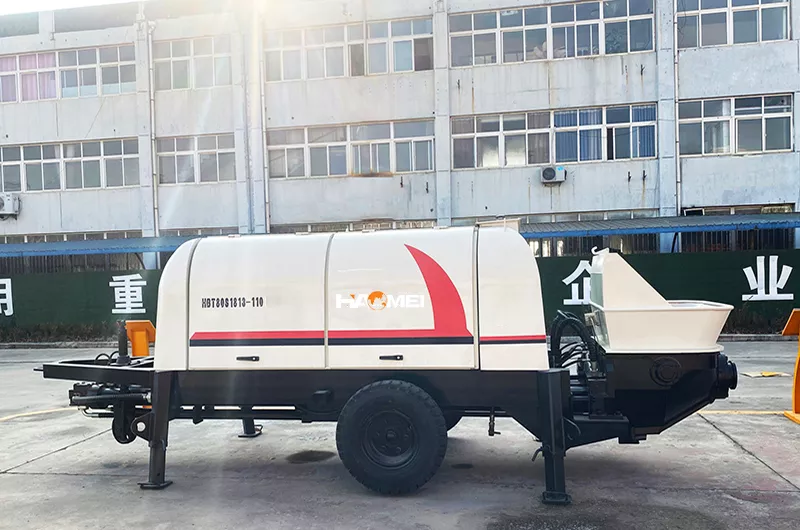

The HBT80S1813-110 is a high-power, high-efficiency trailer concrete pump, designed for medium to large-scale construction projects, bridges, and hydropower engineering that require high-intensity continuous operation. It features strong pumping pressure, large discharge volume, and stable working performance.
HBT80S1813-110 Trailer Concrete Pump Technical Parameters
| Project | HBT80S1813-110 | |
| Type | Horizontal single-acting double-row hydraulic piston type | |
| Concrete Distribution Valve | "S" pipe valve | |
| Theoretical Concrete Conveying Pressure | High Pressure and Small Displacement | 51m³/h |
| Low Pressure and Large Displacement | 84m³/h | |
| Theoretical Concrete Delivery Volume | High Pressure and Small Displacement | 13MPa |
| Low Pressure and Large Displacement | 6.27MPa | |
| Concrete Cylinder Bore × Maximum Stroke | 200 × 1800mm | |
| Motor (Oil Extraction Unit) Power | Rated power 110KW | |
| Main Oil Pump Discharge | 260 | |
HBT80S1813-110 Trailer Concrete Pump Features
- High Efficiency: Theoretical output of 80 cubic meters per hour meets fast construction requirements.
- Strong Pumping Force: 13MPa high pressure is capable of high-rise and long-distance pumping tasks.
- Smooth Operation: The 1800mm long-stroke design ensures stable pumping rhythm and low wear.
- Strong Adaptability: The S-valve structure guarantees excellent concrete flow; diesel power makes it suitable for any construction site environment.
- Durable and Robust: Based on its design parameters, this equipment typically uses a heavy-duty structure suitable for long-term continuous operation under harsh conditions.
HBT80S1813-110 Trailer Concrete Pump Applications
- Concrete pouring for high-rise residential and commercial buildings.
- Construction of piers and decks for highway and railway bridges.
- Large-scale infrastructure projects such as hydropower dams and port wharves.
- Other industrial and civil construction projects requiring large-scale, high-strength concrete delivery.
The HBT80S1813-110 is a well-balanced and powerful piece of construction machinery, making it an ideal and commonly used concrete delivery equipment for medium and larger-scale construction projects.
