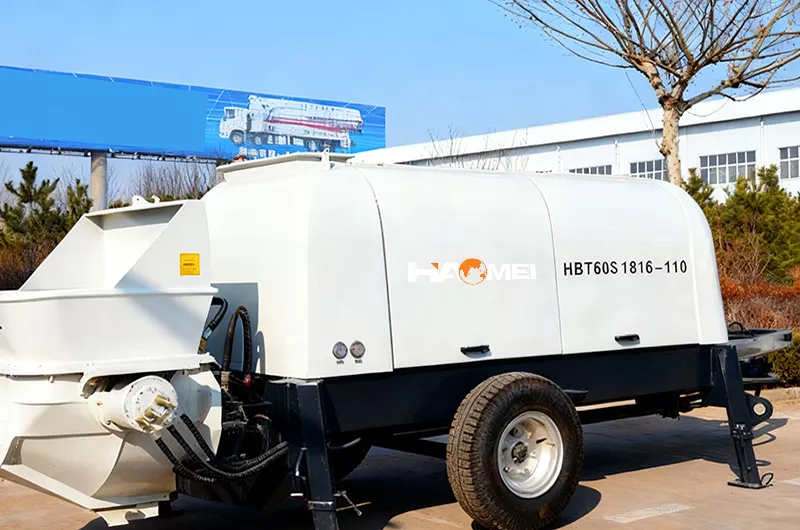

The HBT60S1816-110 is a typical and well-balanced trailer concrete pump designed for medium and large-scale construction projects, hydraulic engineering, and bridge construction that require high efficiency and long-distance concrete delivery.
This model has a maximum theoretical output of 60 cubic meters per hour, ensuring stable and high-volume pumping performance. It adopts an S-valve distribution system, known for its durability, easy maintenance, and suitability for delivering concrete with large aggregates.
The HBT60S1816-110 Trailer Concrete Pump is equipped with an 1800 mm hydraulic cylinder stroke, which provides strong and smooth delivery with every stroke, effectively improving pumping efficiency and reducing material pulsation. Its maximum outlet pressure of 16 MPa enables long-distance and high-altitude pumping, meeting the demands of harsh construction conditions.
The HBT60S1816-110 is powered by a 110 kW diesel engine, providing strong and reliable power even in remote areas or construction sites with limited electricity, ensuring continuous operation.
HBT60S1816-110 Trailer Concrete Pump Technical Parameters
| Item | HBT60S1816-145R | |
| Type | Horizontal single-acting twin-cylinder hydraulic piston type | |
| Concrete distribution valve | "S" valve | |
| Theoretical concrete output | High pressure, low output | 44m³/h |
| Low pressure, high output | 72m³/h | |
| Theoretical concrete outlet pressure | High pressure, low output | 16MPA |
| Low pressure, high output | 9.5MPA | |
| Concrete cylinder diameter × maximum stroke | 200×1800mm | |
| Main engine (diesel engine) power | Rated power 110KW | |
| Main oil pump displacement | 190ml/r | |
HBT60S1816-110 Trailer Concrete Pump Features and Advantages
- High pumping efficiency: The 60m³/h delivery capacity combined with the fast switching S-valve ensures high efficiency when pouring large volumes of concrete (such as slabs and foundations), significantly shortening construction time.
- Powerful pumping pressure: The outlet pressure of 16MPa provides a strong "heart, " making it capable of handling high-rise buildings or long-distance pumping with ease, expanding its range of applications.
- Excellent power and reliability: The 110kW diesel engine provides independent and powerful energy without the need for external power supply, making it especially suitable for fieldwork or newly opened construction sites where electricity is limited or unavailable.
- Optimized structural design: The 1800mm long-stroke cylinder design ensures sufficient delivery volume per stroke while reducing piston reciprocating frequency, helping to extend the service life of critical wear parts such as delivery cylinders and pistons, and lowering long-term operating costs.
- Outstanding mobility: As a trailer-type pump, it offers excellent mobility, allowing quick relocation between or within construction sites, greatly improving equipment utilization and cost-effectiveness.
HBT60S1816-110 Trailer Concrete Pump Applications
The HBT60S1816-110 Trailer Concrete Pump is suitable for concrete pouring in foundations, bridges, tunnels, roads, and industrial or residential buildings. It is especially ideal for long-distance or high-altitude concrete pumping applications.
- Concrete pouring for various civil and commercial high-rise or super high-rise buildings.
- Pier and deck construction for highway and railway bridges.
- Large-scale infrastructure projects such as hydraulic dams, ports, and docks.
- Lining works for tunnels, mines, and other underground engineering projects.
Applicable to any construction site requiring long-distance or high-altitude concrete pumping.
The HBT60S1816-110 trailer concrete pump is a versatile machine that combines high efficiency, strong pumping capability, excellent mobility, and reliable power. Its configuration achieves a well-balanced performance among power, pressure, and output, making it a highly reliable and universal choice for contractors facing diverse and demanding construction challenges.
