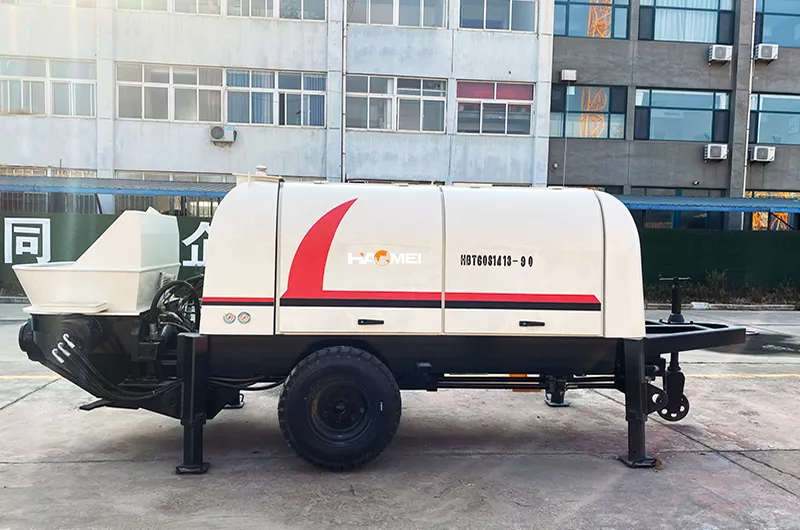

HBT60S1413-90 is a trailer-mounted concrete pump specially designed for efficient and continuous concrete conveying in medium to large construction projects such as bridges, tunnels, and urban infrastructure.
The HBT60S1413-90 features a mature design, reliable performance, and wide applicability. It perfectly balances delivery efficiency, pumping distance, power performance, and mobility, making it an ideal choice for many construction contractors engaged in mechanized concrete operations.
HBT60S1413-90 Trailer Concrete Pump Technical Parameters
The main parameters of the trailer concrete pump are: delivery displacement, outlet pressure, power, and distribution valve type.
| Type | Horizontal single-acting double-row hydraulic piston type | |
| Concrete distribution valve | "S" pipe valve | |
| Theoretical concrete pumping displacement | High pressure small displacement | 40 m³/h |
| Low pressure large displacement | 60 m³/h | |
| Theoretical concrete outlet pressure | High pressure small displacement | 13 MPa |
| Low pressure large displacement | 7.5 MPa | |
| Concrete cylinder bore × stroke | 200 × 1400mm | |
| Motor Power | 90 kW | |
| Main oil pump discharge | 190 ml/r | |
HBT60S1413-90 Trailer Concrete Pump Features
- Powerful performance and high delivery efficiency: The 90kW diesel engine provides abundant power for the entire system. Combined with a delivery capacity of 60m³/h, it can efficiently complete concrete pouring tasks.
- Excellent pumping pressure: With an outlet pressure of 13MPa, it has strong long-distance and high-altitude pumping capability, suitable for medium- and high-rise buildings, bridges, tunnels, and other projects.
- Reliable S-valve system: The S-shaped valve design ensures continuous and stable pumping, providing stronger adaptability to different concrete types and reducing the risk of pipe blockage.
- Flexible mobility: The trailer-mounted design allows for rapid transfer between different construction sites, greatly improving equipment utilization and project scheduling flexibility.
- Optimized structural design: The 1400mm long-stroke concrete cylinder, combined with a specific cylinder diameter, maximizes the discharge per pumping cycle, enhancing work efficiency and reducing reversing impact.
- High efficiency and energy saving: Through optimized design and energy-saving technology, it reduces power consumption and improves work efficiency.
- Easy operation: Equipped with an advanced control system and user-friendly interface, enabling operators to easily control and monitor the equipment.
HBT60S1413-90 Trailer Concrete Pump Applications
- Construction of medium- and high-rise residential and commercial buildings
- Floor and structural casting for industrial plants and warehouses
- Foundation and pier construction for highways and bridges
- Hydraulic and hydropower infrastructure projects
- Any construction environment requiring frequent site transfers without stable power supply
The HBT60S1413-90 trailer concrete pump achieves an ideal balance among output capacity, pressure, and power, making it a versatile, efficient, and durable solution for concrete delivery needs in various construction environments.
