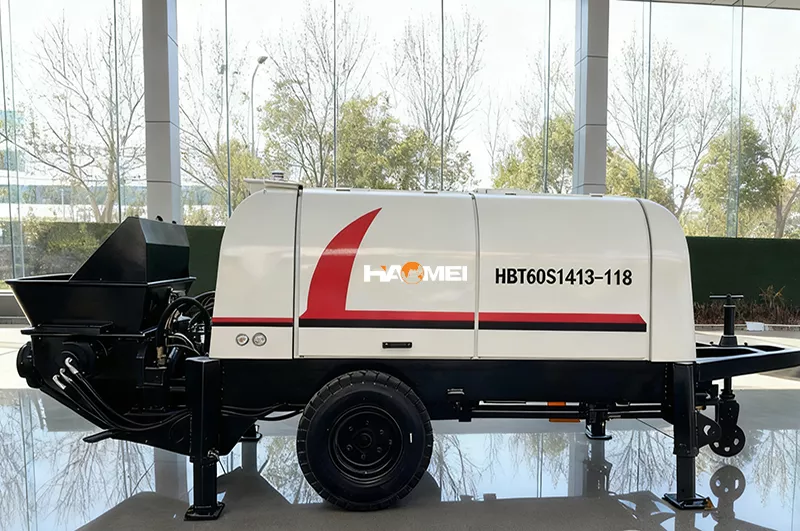

The HBT60S1413-118R is a powerful and reliable trailer concrete pump designed for medium to large-scale projects such as bridges, tunnels, urban infrastructure, and high-rise buildings. It combines strong pumping performance, stable operation, and high energy efficiency to ensure continuous and consistent concrete delivery at construction sites.
HBT60S1413-118R Trailer Concrete Pump Technical Parameters
| Project | HBET60S1413-118R | |
| Type | Horizontal single-acting double-row hydraulic piston type | |
| Concrete distribution valve | "S" pipe valve | |
| Theoretical concrete conveying pressure | High pressure and small displacement | 37 m³/h |
| Low pressure and large displacement | 62.2 m³/h | |
| Theoretical concrete delivery volume | High pressure and small displacement | 13 MPa |
| Low pressure and large displacement | 7.5 MPa | |
| Concrete cylinder bore × maximum stroke | 200 × 1400 mm | |
| Motor (oil extraction unit) power | Rated power 118 kW | |
| Main oil pump discharge | 130 ml/r | |
| Dimensions: length × width × height | 6300 × 2040 × 2490 mm | |
HBT60S1413-118R Trailer Concrete Pump Features
- Hydraulic System: Automatically adjusts output power to reduce energy consumption and extend service life. The dual-pump, dual-circuit design allows pumping and distributing actions to operate independently, minimizing interference and improving stability.
- Intelligent Control: Equipped with an intelligent control system that supports real-time monitoring of oil temperature, pressure, and pumping frequency. It also includes fault self-diagnosis and protection features that quickly locate and display error codes, simplifying maintenance.
- Wear-Resistant Design: The inner wall of the valve box and scraper area are hardfaced with special welding materials. The cutting ring and wear plate are made of high-hardness alloy materials, effectively resisting abrasion from concrete and extending the lifespan of wear parts by more than 30% compared to traditional designs.
- Lubrication and Cooling: Integrated automatic multi-point lubrication system ensures uniform lubrication of moving parts (such as the S-valve shaft and concrete cylinder piston) through a progressive distributor. An independent cooling system maintains oil temperature below 60°C, ensuring continuous long-term operation.
- High Efficiency: With a flow rate of 60 m³/h and a pressure of 13 MPa, it balances pumping speed and power efficiency, making it ideal for demanding construction environments.
- Durable S-Valve System: The wear-resistant S-valve ensures smooth material flow, minimizes blockages, and extends overall service life.
- Reliable Diesel Power: The 118 kW engine provides strong and stable performance even under heavy loads or on rugged terrain.
- Easy Mobility: The trailer-mounted design allows convenient transportation between construction sites.
- User-Friendly Maintenance: Optimized layout facilitates easy access to major components, simplifying daily inspection and servicing.
HBT60S1413-118R Trailer Concrete Pump Applications
- High-Rise Buildings: The 13 MPa outlet pressure is ideal for concrete pouring in residential and commercial complexes.
- Bridges and Tunnels: The S-valve’s high compatibility with aggregates (maximum particle size 40–125 mm) makes it suitable for long-span bridges and tunnel linings.
- Hydraulic and Energy Projects: Capable of handling continuous large-volume concrete pumping for dams, power stations, and other major infrastructure projects. The flexible pipeline configuration further enhances construction efficiency.
HBT60S1413-118R Trailer Concrete Pump Advantages
- Energy-Saving Technology: Adopts adaptive variable power control that automatically adjusts engine output according to concrete slump and pumping resistance, reducing fuel consumption by 15%–20% compared to traditional models.
- Easy Maintenance: The modular design allows key components (such as the hydraulic pump and distribution valve) to be easily removed and replaced. Routine maintenance requires only checking oil levels, filters, and lubrication points, reducing maintenance costs by 10%–15% compared to similar models.
- Verified Reliability: Each unit undergoes simulated overload testing before delivery to ensure zero-failure operation under working conditions.
HBT60S1413-118R Trailer Concrete Pump Operating Recommendations
Pipeline Layout:
Prefer straight pipelines and minimize the number of elbows (each additional 90° elbow increases pressure loss by approximately 5%). A check valve should be installed at the base of vertical pipelines to prevent concrete backflow.
Pipeline connections must be firmly sealed. Regularly inspect for wear to avoid high-pressure accidents caused by pipeline rupture.
Winter Operation:
In low-temperature environments, use antifreeze hydraulic oil rated below –10°C and activate the preheating function. After shutdown, drain all concrete from the pipeline and pump body to prevent freezing damage.
With its high pressure, large displacement, intelligent control, and wear-resistant design, the HBT60S1413-118R is an ideal choice for mid- to high-rise buildings, bridges, and tunnels. Its design balances efficiency and reliability, and with proper operation and maintenance, it can significantly improve construction progress while reducing overall costs.
