The 6 cubic meter concrete mixer truck is a specialized vehicle used to transport and mix concrete at construction sites. It utilizes a rotating drum to prevent the concrete from setting. This type of vehicle consists of a chassis, mixing drum, and hydraulic system, and comes in various sizes.
As a professional manufacturer of concrete mixing and transportation equipment, Haomei Machinery produces mixer trucks with capacities ranging from 2 cubic meters to 16 cubic meters. Our mixer trucks use high-strength wear-resistant steel, optimized blade structures, and a mature hydraulic transmission system design, capable of meeting transportation needs across various applications, from urban roads and small construction sites to centralized large commercial concrete plants.
From small mixer trucks of 2m³, 3m³, and 4m³ to large ones of 6m³, 8m³, 10m³, 12m³, 14m³, and 16m³, Haomei can provide customized configurations based on the client’s project scale, road conditions, and specific use. Customization options include chassis brand selection, engine power, hydraulic system brand, drum material and thickness, and superstructure design, ensuring that the equipment maintains high stability and high discharge efficiency in different countries and regions.

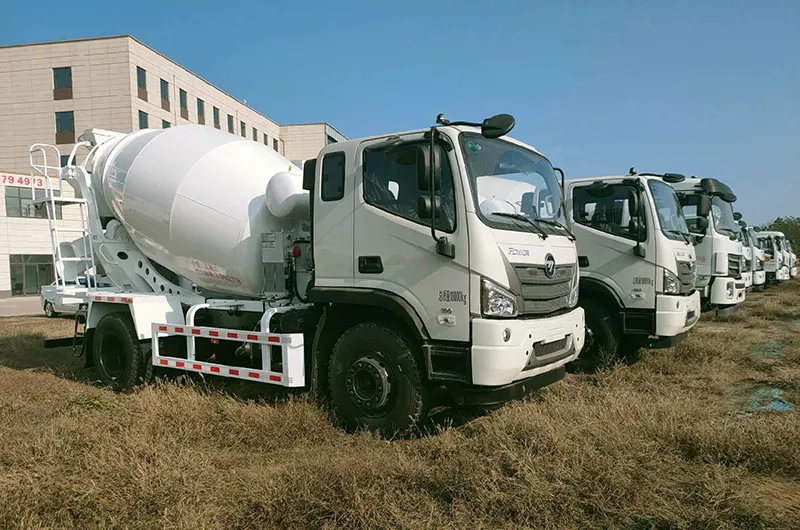

6m3 Concrete Mixer Truck Specifications
| Model | HM6-D | |
| Specification | Unit | Value |
| Mixing Capacity | m³ | 6 |
| Tank Volume | m³ | 9.96 |
| Feeding Speed | m³/min | ≥3 |
| Discharging Speed | m³/min | ≥1.5 |
| Residual Ratio of Discharging | % | ≤0.5% |
| Water Supply System | Air pressure | |
| Water Tank Volume | L | 260 |
| Overall Dimension | mm | 8450*2496*3835 |
| Chassis Model | Steyr | |
| Clutch | φ | φ430 Monolithic dry type |
| Min Ground Clearance | mm | 297 |
| Max Speed | km/h | 75 |
| Engine Max Output Power | kw | 247 |
| Emission Standard | Euro Ⅲ | |
| Rated Load | kgs | 12600 |
| Overall Weight | kgs | 25000 |
| Wheelbase | mm | 3225+1350 |

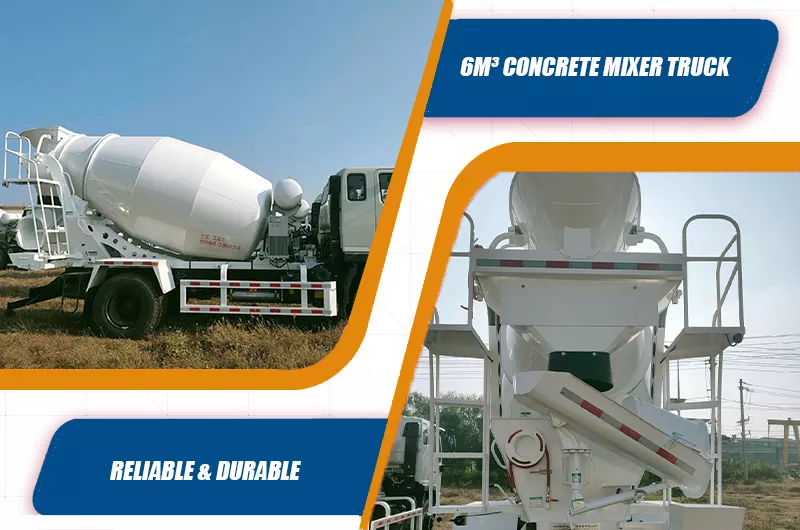

Features and Advantages of 6m³ Concrete Mixer Truck
- High Flexibility: The vehicle body is relatively compact (compared with 8m³, 10m³, 12m³ trucks), with a small turning radius and good passability, making it very suitable for complex road conditions in urban areas, narrow construction sites, and rural roads.
- Good Compliance: Under strict overload control regulations, the 6m³ truck is one of the main models used in city batching plants. It balances payload and vehicle total weight well, reducing the risk of overloading.
- Efficiency Matching: Suitable for small to medium-sized construction projects, such as residential buildings, small housing complexes, and municipal projects. It enables fast, multi-point delivery and reduces waiting time at construction sites.
- Economy: Purchase cost, fuel consumption, and maintenance expenses are usually lower than larger capacity models.
Structural Components of 6m³ Concrete Mixer Truck
- Chassis and Engine: The truck uses a standard heavy-duty chassis, and engine power varies depending on the model.
- Mixing Drum: This is the core component, used for holding and rotating concrete, preventing it from solidifying during transportation.
- Hydraulic System: The hydraulic system controls the rotation of the drum, enabling concrete loading, mixing, and discharge.
- Operator Cabin: The operator can control the drum rotation from the cabin or the rear control panel for operations such as "loading, " "discharging, " and "mixing."
- Water Supply: Usually equipped with a pneumatic water supply system for cleaning the drum and other components.
- Discharge: The discharge chute height is adjustable and rotatable to pour concrete as needed.
Comparison of 6m³ Concrete Mixer Truck with Other Mixer Trucks
| Feature | 6m³ Mixer Truck | 8m³/10m³ Mixer Truck | 12m³ or Above Mixer Truck |
| Applicable Scenarios | Urban, towns, complex road conditions, small to medium-sized projects | Suburban, relatively good road conditions, medium-sized projects | Large infrastructure (high-speed rail, highways), ports, fixed routes |
| Single Transport Volume | Small | Medium | Large |
| Site Condition Requirements | Low | Medium | High (requires spacious site) |
| Overload Risk | Low | Medium (requires precise calculation) | High (very easy to overload) |

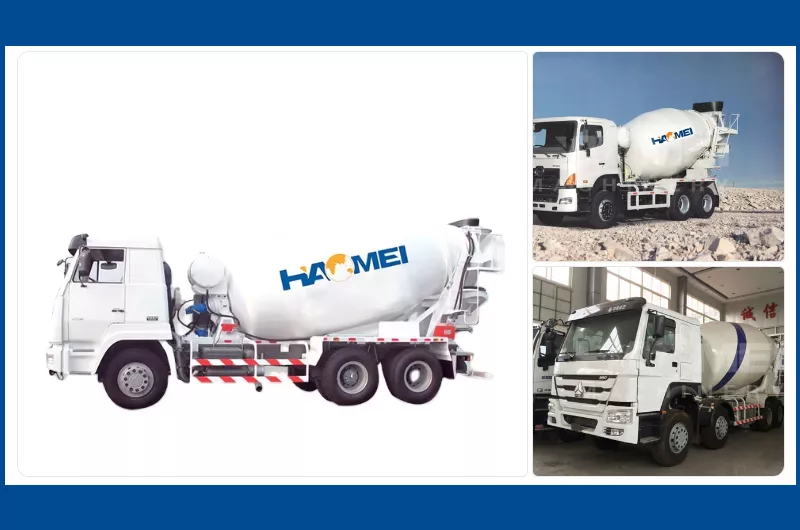

Haomei Machinery Concrete Mixer Truck for Sale
| Model / Capacity | Mixing Capacity (m³) | Drum (Tank) Capacity (m³) | Concrete Supply / Discharge Rate |
| HM6-D | 6 | 9.96 | Supply ≥ 3 m³/min; Discharge ≥ 1.5 m³/min; Residue ≤ 0.5% |
| HM8-D | 8 | 12.8 | Supply ≥ 3 m³/min; Discharge ≥ 1.5 m³/min; Residue ≤ 0.5% |
| HM9-D | 9 | 14.7 | Supply ≥ 3.5 m³/min; Discharge ≥ 3 m³/min; Residue ≤ 0.5% |
| HM10-D | 10 | 17.05 | Supply ≥ 3.5 m³/min; Discharge ≥ 3 m³/min; Residue ≤ 0.5% |
| HM12-D | 12 | ~17.93 | Similar performance (Supply / Discharge Rate ≥ 3–3.5 m³/min) |
| HM14-D | 14 | ~20.1 | High-capacity design, suitable for high-demand scenarios |
Frequently Asked Questions About Concrete Mixer Trucks
How many m3 of concrete in a truck?
Generally, a mixer truck can carry 2–16 m³, depending on the model. The capacity of a concrete mixer truck varies by type, generally ranging from 2m³ to 16m³.
- Small mixer trucks: 2–5 m³, suitable for small projects or narrow construction sites.
- Medium mixer trucks: 6–10 m³, suitable for general municipal or residential projects.
- Large mixer trucks: 12–16 m³, mostly used for large commercial projects or concrete supply stations.
The "m³" of a mixer truck refers to the geometric volume of the mixing drum. The actual amount of concrete transported each time is slightly less than the full drum volume, generally about 95% of the rated capacity.
How much does a 6m3 concrete truck weigh?
6 m³ of concrete is approximately 6 × 2.4 = 14.4 tons (concrete density about 2.4 t/m³)
Adding the weight of the mixer truck itself (chassis + drum + hydraulics, etc.), the total weight is usually around 18–22 tons, depending on the chassis model and mounted configuration.
Note: There is a maximum allowable total weight limit for road transport, so the loading volume may be slightly adjusted.
