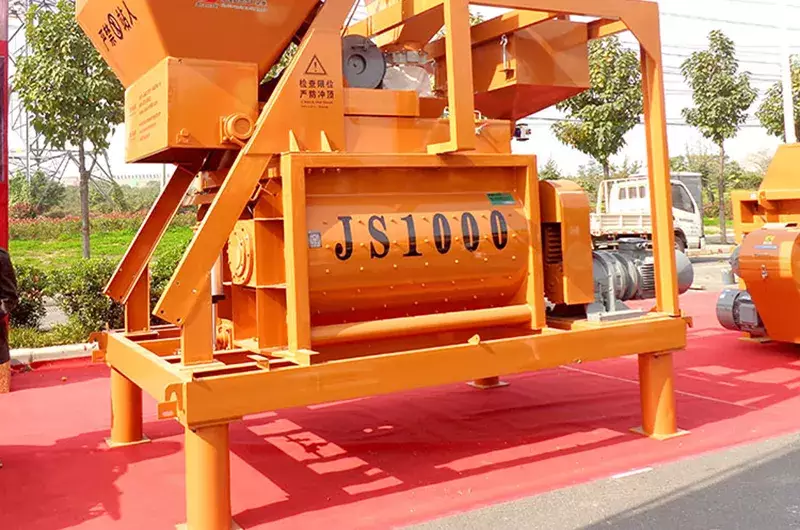

JS1000 Concrete Mixer

The JS1000 concrete mixer is a twin-shaft compulsory mixing equipment with a discharge capacity of 1 cubic meter, commonly used as the main mixer for HZS50 and HZS60 concrete batching plants. The machine adopts double-spiral mixing blades and wear-resistant alloy liners, delivering high mixing efficiency and excellent uniformity.

JS1000 is a very common and classic model of concrete mixer, suitable for medium and large construction projects, commercial concrete batching plants, and precast component factories.

JS1000 Concrete Mixer Specifications

JS1000 Concrete Mixer Features

• 1 m³ discharge volume per batch, with a theoretical productivity of 50–60 m³/h
• Twin-shaft design for uniform mixing, suitable for dry hard, plastic, and fluid concrete
• Wear-resistant liners and mixing arms for long service life and low maintenance frequency
• Can be matched with PLD1600 to form a medium-sized concrete batching plant

• Compulsory mixing: Two counter-rotating mixing shafts with cross-arranged mixing blades shear, squeeze, and overturn the materials. This mixing method is highly efficient and delivers excellent mixing quality, especially suitable for dry hard, semi-dry hard, and plastic concrete.
• High mixing efficiency: Fast mixing speed and good homogeneity help ensure the strength and quality of concrete.
• Fast discharging: Typically equipped with a hydraulically driven discharge door, allowing fast discharge without residue and reducing concrete waste.
• Robust structure: Built with welded steel plates, offering good wear resistance and long service life.
• Strong compatibility: Serves as the main mixer for concrete batching plant models such as HZS50 and HZS60.

JS1000 Concrete Mixer Applications

• Commercial concrete batching plants: As the core mixer for HZS50/HZS60.
• Large water conservancy, highway, and bridge projects: Used as the main mixer of on-site batching plants.
• Precast component factories: Used for producing precast piles, sleepers, blocks, and other components.
• Other sites requiring large quantities of high-quality concrete.

As the core mixer of HZS50 and HZS60 batching plants, the JS1000 Concrete Mixer can be used together with the PLD1600 batching machine, cement silos, and other equipment. It can also be applied in precast production lines for items such as concrete piles, slabs, and blocks.

JS1000 Concrete Mixer Supporting Equipment

A standalone JS1000 mixer requires the following equipment to form a complete working system:

• Batching machine: Such as the PLD1600 concrete batching machine, responsible for accurate measurement of sand, gravel, and other aggregates.
• Cement silo: Used for storing cement, fly ash, and other powder materials.
• Screw conveyor: Transfers cement from the silo to the mixer.
• Water and additive metering system: Precisely measures water and various admixtures.
• Control system: Automatically controls the entire process of feeding, metering, mixing, and discharging.
• Feeding system: Usually a belt conveyor or lifting hopper.

JS1000 Concrete Mixer Advantages

Efficient Mixing

The twin-shaft counter-rotating design enables materials to be rapidly mixed under combined actions of pushing, rubbing, and squeezing. Ordinary concrete requires only 20 seconds of mixing, while high-performance concrete can reach uniformity in about 35 seconds.

Mixing efficiency is increased by more than 30% compared with traditional single-shaft models.

Durability and Reliability

• Wear-resistant parts: Blades and liners made of wear-resistant alloy materials can last for 50, 000–60, 000 batches. Regular gap adjustment can further extend service life.
• Centralized lubrication system: Four-point independent dry-oil lubrication ensures long-term stable operation of key components.
• Intelligent monitoring: Some models feature reducer oil temperature and oil level monitoring with fault alarms, supporting remote diagnostics.

JS1000 Concrete Mixer Purchasing Tips

• Confirm your needs: Determine whether the JS1000 is suitable based on your project size and the type of concrete required (e.g., regular concrete, high-strength concrete, or special concrete).
• Inspect key components: Pay close attention to the wear resistance of mixing blades and liners, the performance of the reducer and motor, and the stability and reliability of the hydraulic system.
• Consider the level of automation: Depending on your budget and labor costs, choose between manual, semi-automatic, or fully automatic control systems.

The JS1000 concrete mixer is a stable-performing, medium-capacity, and widely applicable twin-shaft compulsory mixer. It is an ideal choice for medium-sized concrete production lines and plays a crucial role in a wide range of construction projects with its efficient mixing capability and reliable mixing quality.

Haomei JS1000 Concrete Mixer Customer Cases

• JS1000 Mixer-Integrated HZS50 Concrete Batching Plant Operated in Argentina

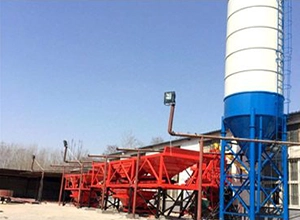

• Ethiopia Project: HZS60 Concrete Batching Plant Configured with JS1000 Mixer
