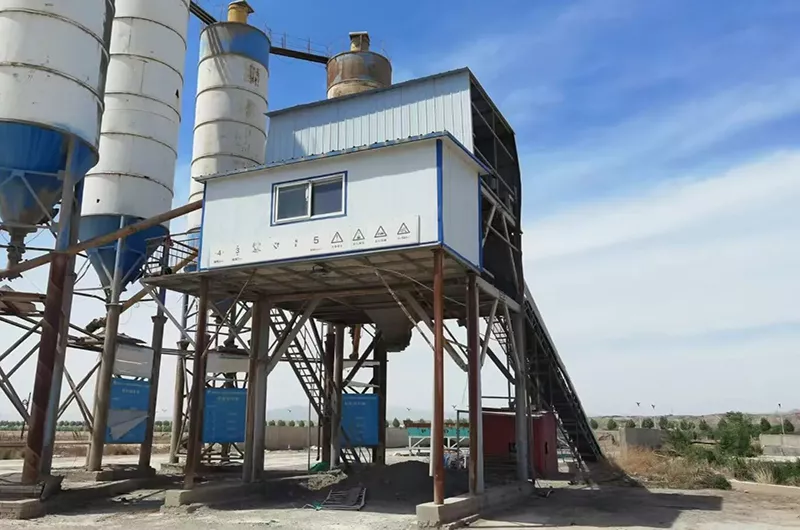

HZS90 Concrete Batching Plant

The HZS90 concrete batching plant is a mature, stable-performance, and highly popular medium-sized concrete production equipment. It strikes an excellent balance among efficiency, investment cost, operation management, and environmental performance, making it an ideal choice for many concrete producers and large construction projects. If you are selecting equipment, the HZS90 is definitely a mainstream model worth serious consideration.

The theoretical output of the HZS90 concrete batching plant is 90 cubic meters per hour, and it is widely used in urban construction, road and bridge projects, water conservancy engineering, and other fields.

Compared with smaller models, the HZS90 Concrete Batching Plant offers higher production efficiency and better economies of scale. Compared with larger models, the HZS90 has a lower investment threshold and more controllable operating costs. This balance makes the HZS90 the preferred choice for medium-sized engineering projects.

Parameters of HZS90 Concrete Batching Plant

HZS90 Concrete Batching Plant Components

Mixing System

Equipped with a standard JS1500 twin-shaft compulsory concrete mixer, capable of mixing concrete up to C50 strength grade. The mixer uses wear-resistant alloy materials and features anti-stick shaft technology to reduce cleaning frequency and extend service life.

Batching System

• Aggregate batching machine: Typically a PLD2400 or PLD3200 multi-bin cumulative weighing batching machine. It includes 3–4 aggregate bins (for storing gravel, sand, etc.) with electronic scales for precise measurement.
• Powder silos: Usually 2–4 large vertical silos for storing cement, fly ash, and mineral powder. Each silo is equipped with a top-mounted dust collector.
• Water metering system: Includes a water tank, water pump, water scale, and pipelines.

Material Conveying System

• Aggregate conveying: Most commonly uses an inclined belt conveyor (also known as an aggregate belt conveyor). This is a signature feature of the HZS series batching plants, offering high efficiency, large conveying capacity, and reliable operation.
• Powder conveying: Typically uses a screw conveyor to transport powder from the silo to the powder scale above the mixer.

Control System

The mainstream configuration is a PLC + industrial computer control system, supporting automatic, semi-automatic, and manual modes, with features such as automatic drop correction, moisture compensation, and fault diagnosis.

HZS90 Concrete Batching Plant Features and Advantages

High Production Efficiency

The modular design supports quick installation. The dual-motor driven mixer can operate with a 10% overload. The aggregate temporary storage system reduces waiting time, and the actual output can exceed 90% of the theoretical capacity.

Accurate Weighing

A fully electronic independent weighing system equipped with buffer compensation devices keeps the measurement error of aggregates, powders, water, and additives strictly within industry standards, ensuring precise concrete mix proportions.

Intelligent Management

The user interface is intuitive, capable of storing multiple mix recipes, supporting production data tracing and report generation. Some models can connect to BIM systems for seamless integration with engineering management platforms.

Environmental Adaptability

Plateau type: Designed for high-altitude conditions of 3000–4500 meters, equipped with plateau-specific motors and heating systems, suitable for extreme temperatures from –20℃ to 40℃.

Standard type: Operating temperature range is 1℃–40℃, suitable for most regions.

HZS90 Concrete Batching Plant Application Scenarios

• Large-scale infrastructure: High-speed rail bridges, expressways, ports, and other projects requiring continuous concrete production.
• Commercial concrete plants: Daily output of 2000–3000 cubic meters of ready-mix concrete.
• Special engineering: Hydropower hubs or tunnel construction in plateau or cold regions (requires plateau-type configuration).
• Ready-mix concrete companies: Used as the main production equipment supplying concrete for urban construction and infrastructure projects.
• Precast component factories: Provides concrete for the production of precast concrete elements.

HZS90 Concrete Batching Plant Supporting Equipment

• Transportation equipment: Requires 8–12 m³ concrete mixer trucks (recommended 6–8 units), paired with a concrete pump truck or trailer pump for pouring operations.
• Auxiliary facilities: Wheel loaders for aggregates, powder tanker trucks, etc.

HZS90 Concrete Batching Plant Selection Recommendations

• Based on output demand: If the project requires more than 2000 cubic meters of concrete per day, it is recommended to choose a dual-machine parallel configuration (2HZS90), with a capacity of up to 180 m³/h.
• For strict environmental requirements: Projects in urban or environmentally sensitive areas should prioritize models equipped with enclosed storage systems and wastewater recycling systems.

With its high efficiency, precision, and environmental performance, the HZS90 concrete batching plant has become a mainstream choice for medium and large engineering projects. When selecting a model, it is important to consider project scale, budget, and local service capability to ensure long-term stable operation of the equipment.

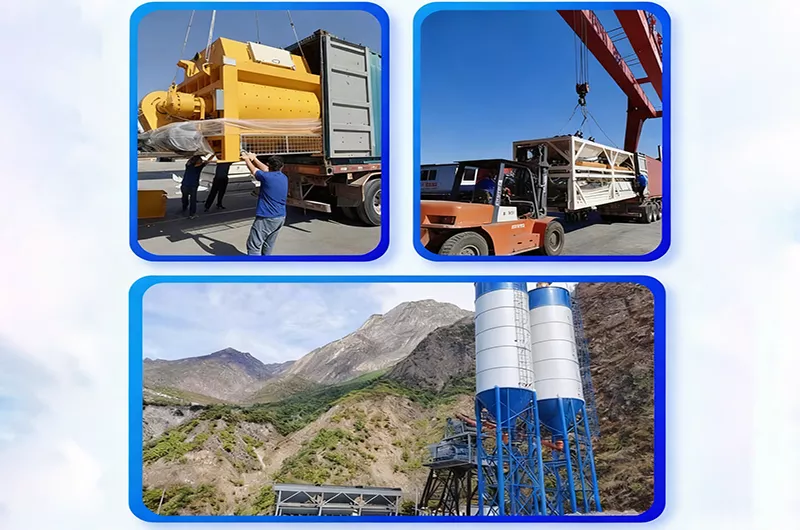

Haomei HZS90 Concrete Batching Plant Customer Cases

• Saudi Arabia HZS90 Plant Featuring JS1500 Mixer
• Chile HZS90 Project with JS1500 Concrete Mixer
• HZS90 Concrete Batching Plant Operation in Ethiopia
• Brazil HZS90 Concrete Batching Plant Delivered
