The HZS75 Concrete Batching Plant is a fully automated concrete production equipment with a theoretical output of 75 cubic meters per hour, widely used in construction sites, precast component factories, and commercial concrete production plants. The HZS75 Concrete Batching Plant consists of feeding, batching, mixing, and electrical control systems, equipped with a JS1500 twin-shaft compulsory mixer, featuring automated control, high production efficiency, and easy maintenance.
Parameters of HZS75 Concrete Batching Plant
| Type | HZS75 |
| Productivity in theory | 75m³/h |
| Mixer | JS1500 |
| Totapower | 130KW |
| Maximum aggregate diameter | 80mm |
| Aggregate feeding method | Skip hopper |
| Batcher | PLD1200 |
| Aggregate weighing | 6000kg ±2% |
| Cement(plus fly-ash) weighing | 1000kg ±1% |
| Water weighing | 500kg ±1% |
| Overaldimension(during operating) | 25.9mX9.2mX11.1m |
| (LXWXH) | |
| Discharging height | 3.8m |
| Totaweight | 50T |
| Control | Fully automatic centracontrol |
| Cement silo(optional) | Required on clients' demand |
| Cement screw(optional) | Each cement silo equipped with one φ219 screw |
HZS75 Concrete Batching Plant Components and Configuration
A complete HZS75 batching plant typically consists of the following core systems:
Mixing System
Main Mixer: Usually a JS1500 twin-shaft compulsory mixer. This is the core of the batching plant, capable of producing 1.5 cubic meters of concrete per cycle (discharge capacity), with high mixing efficiency and uniform quality.
Material Batching System

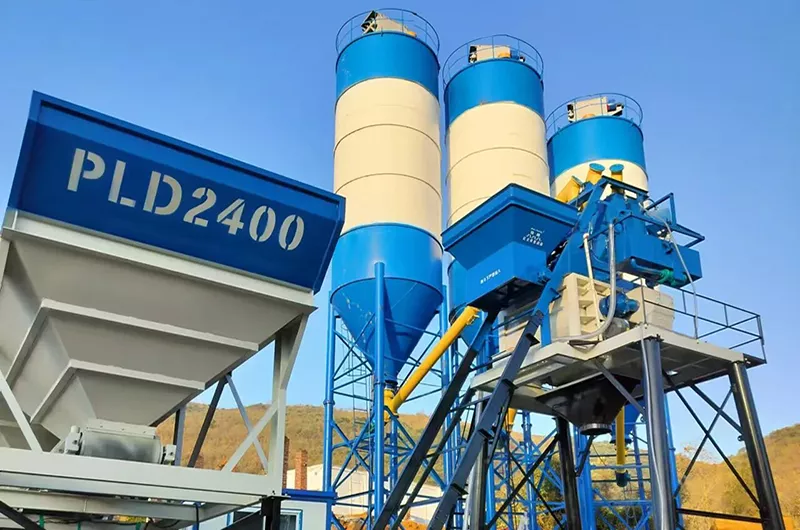

- Aggregate Batching Machine: Usually a PLD2400 four-bin concrete batching machine. It includes 2–4 aggregate bins (for sand and gravel), with pneumatic or electric gates and weighing sensors for precise batching.
- Powder Silos: Typically equipped with 2–4 cement and fly ash silos of 100 tons each for storing cement, fly ash, and other powdered materials.
- Water Weigher: Accurately measures water for mixing.
- Admixture Weigher: Accurately measures various liquid additives.
Material Conveying System
- Aggregate Conveying: Mainly in two forms, which also distinguishes plant types:
- Belt Conveyor: More common, smooth conveying, high efficiency, low loss, suitable for stable and continuous production requirements.
- Bucket Elevator: Also called "hopper lift, " small footprint, relatively simple structure, slightly lower investment cost, but lower efficiency than belt conveyors and more wear and noise.
- Powder Conveying: Cement is conveyed from powder silos to the powder weighing hopper above the main mixer via screw conveyors.
Control System
Core system is a fully automatic computer control system. Operators can input mix formulas, run fully automated production, store data, and print reports from the control room. Modern systems often feature fault diagnosis.
Pneumatic and Dust Removal System
- Pneumatic System: Provides power for batching machine gates, cement silo arch-breaking devices, etc.
- Dust Removal System: Dust collectors are installed at dust-generating points such as the main mixer and powder silo tops to meet environmental requirements.
HZS75 Concrete Batching Plant Features
- Moderate investment with high returns: Compared to large batching plants (such as HZS120, HZS180), it has lower initial and operating costs, making it ideal for medium and small investors and projects.
- Modular design for easy installation and relocation: Most structures adopt modular design, convenient for transportation, installation, and disassembly, making relocation to new sites easier.
- High automation: Uses computer control, automated production, precise measurement, ensuring stable concrete quality and reducing dependence on operator skills.
- Flexible applications: Moderate output meets the needs of small commercial concrete plants and is also widely used in road, bridge, water conservancy, and precast component projects.
- Enhanced environmental performance: Optional enclosed yard, high-efficiency dust collectors, and sand-gravel separation/wastewater recovery systems to meet stricter environmental requirements.
HZS75 Concrete Batching Plant Applications
- Medium and small commercial concrete companies
- Infrastructure construction such as roads, bridges, and tunnels
- Water conservancy and hydropower projects
- Construction sites (especially long-term large residential projects)
- Precast component factories and pile factories
- Ports, docks, and other engineering projects
Workflow of HZS75 Concrete Batching Plant
- Precise Batching: Aggregates, powders, water, and additives are accurately weighed by their respective systems.
- Centralized Mixing: All materials are fed into the main mixer for forced, uniform mixing.
- Discharge and Transportation: The mixed concrete is directly discharged into waiting mixer trucks and transported to the construction site.
HZS75 Concrete Batching Plant Purchasing Recommendations
When purchasing an HZS75 batching plant, consider the following:
- Production Demand: If the daily concrete usage of a project is 500–800 m³, HZS75 is an economical choice; for higher demand, consider HZS90 or dual-unit configurations.
- Aggregate Conveying Method: Choose between belt conveyor or bucket elevator based on site conditions, investment budget, and efficiency requirements.
- Configuration Level: Decide between standard configuration or options to increase powder silos, larger batching machine capacity, or higher environmental standards (e.g., enclosed yard).
- Environmental Requirements: In urban or sensitive areas, prioritize fully enclosed, low-noise models equipped with complete wastewater treatment systems.
- Site Conditions: Fixed batching plants are suitable for long-term projects; mobile plants are better for temporary works or frequently relocated sites.
Why Choose Haomei Machinery
- Experienced team with years of industry expertise.
- Advanced, durable, and efficient equipment for diverse construction needs.
- Strict quality control ensures reliable operation and long service life.
- Global after-sales support with fast, customized solutions.
- Boosting construction efficiency and reducing costs as a trusted partner.
The HZS75 Concrete Batching Plant is a technologically mature, stable, and highly cost-effective medium-sized concrete production equipment. It achieves an excellent balance between investment cost, production efficiency, and operational flexibility, making it an ideal choice for many small and medium concrete production companies and construction projects.
Haomei HZS75 Concrete Batching Plant Customer Cases
-

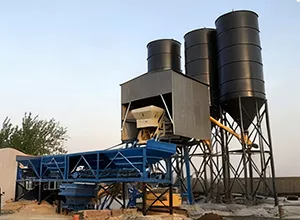

JS1500 Mixer at Indonesia HZS75 Concrete Plant
-
Philippines HZS75 Plant Equipped with JS1500 Mixer
-
HZS75 Concrete Batching Plant project in Saudi Arabia
-
HZS75 Concrete Batching Plant installed in Pakistan
-

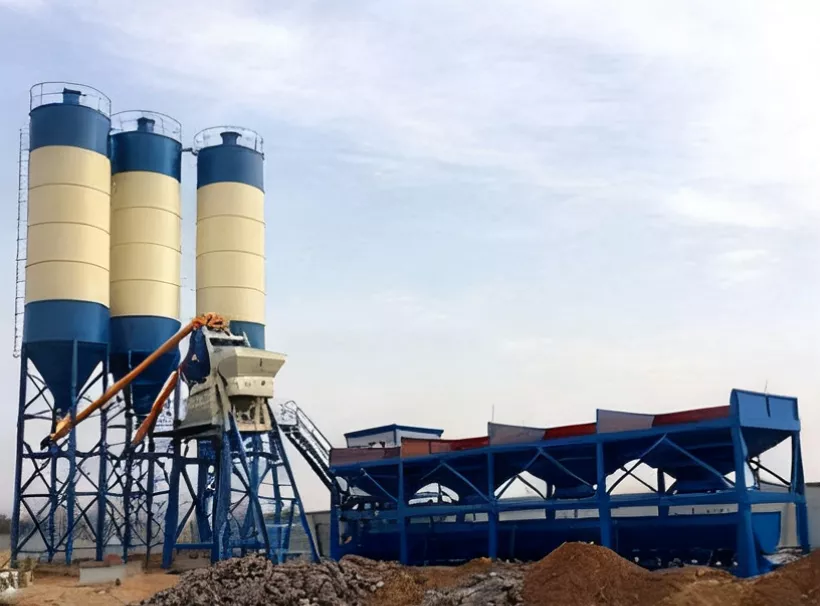

HZS75 Concrete Batching Plant operational in the UAE
