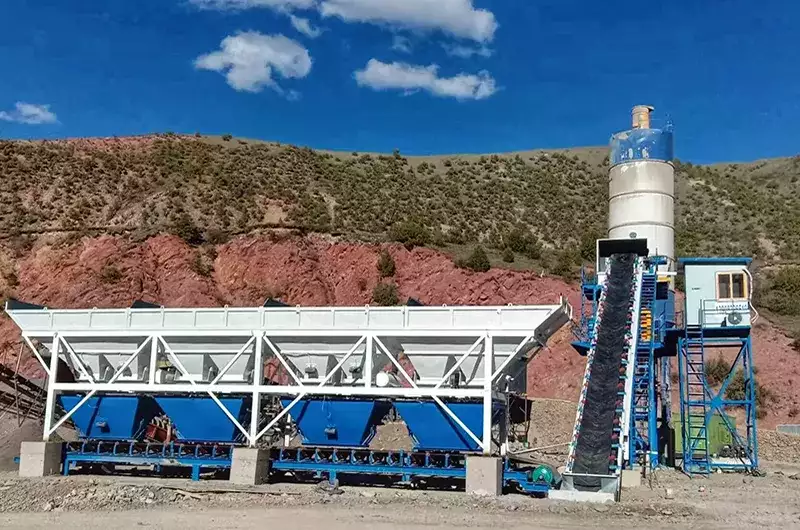

HZS60 Concrete Batching Plant

The HZS60 concrete batching plant is a mature, stable-performance mixing station with a high level of automation and outstanding cost-effectiveness. It perfectly balances output, investment cost, and applicability, making it one of the preferred models for many concrete producers when investing in a new plant.

The HZS60 concrete batching plant is a medium-sized concrete production facility used for mass production of ready-mixed concrete. It is suitable for small to medium construction projects such as roads, bridges, hydraulic engineering, and commercial concrete plants. With a theoretical productivity of 60 cubic meters per hour, it features a modular design that allows for rapid installation and convenient relocation.

Parameters of HZS60 Concrete Batching Plant

Components of HZS60 Concrete Batching Plant

A complete HZS60 batching plant is typically composed of the following systems:

Mixing System

Main mixer: The core component, usually a JS1000 (or JS1500) twin-shaft compulsory concrete mixer. It delivers 1 cubic meter per batch (“1m³ per batch”), featuring excellent mixing quality and high efficiency.

Material Batching System

• Aggregate batching machine: Typically a PLD1600 three- or four-bin batching machine with cumulative weighing, used for accurate metering of sand, gravel, and other aggregates.
• Powder silos: Usually equipped with 2–4 cement silos (such as 100-ton capacity), used to store cement, fly ash, and mineral powder.
• Water metering system: Includes a water tank, water pump, and water scale for precise measurement of mixing water.
• Additive metering system: Includes additive storage tanks and metering scales for accurate measurement of liquid additives.

Material Conveying System

• Aggregate conveying: Typically uses an inclined belt conveyor to deliver batched aggregates to the mixer. This is a signature feature of the HZS series (as opposed to the skip-hoist type).
• Powder conveying: Screw conveyors transport cement from the bottom of the silo to the powder weighing scale.
• Liquid conveying: Uses pipelines and water pumps for delivery.

Control System

Modern HZS60 batching plants use a fully automatic computer control system. Operators can complete the entire production process from the control room, including recipe input, material weighing, mixing time, and discharge. The system also stores multiple mix formulas, prints production data, and manages production efficiency.

Features of HZS60 Concrete Batching Plant

• Medium output with wide applications: The 60m³/h capacity is ideal for small to medium construction projects, hydraulic engineering, roads, bridges, and precast plants—one of the most in-demand models in the market.
• High automation: From batching to mixing and discharging, the entire process is automated with precise measurement, ensuring stable concrete quality.
• High working efficiency: Belt conveyor feeding is much faster than skip-hoist feeding, enabling continuous supply and higher production efficiency.
• Excellent reliability: The twin-shaft mixer is a mature technology capable of mixing dry-hard, semi-dry-hard, plastic, and various concrete mix proportions with superior performance.
• Modular design: Compact structure with convenient installation, dismantling, and relocation, reducing moving time and cost.

Application Scenarios of HZS60 Concrete Batching Plant

• Commercial concrete production: Supplying ready-mixed concrete for urban construction and various engineering projects.
• Small and medium-sized water conservancy and hydropower projects.
• Infrastructure construction such as highways, railways, and bridges.
• Precast concrete plants for pipe piles, precast beams, etc.
• Various industrial and civil construction sites.

With its high efficiency, stability, and environmentally friendly performance, the HZS60 concrete batching plant has become the preferred equipment for small and medium construction projects. Through proper selection and regular maintenance, it enables low-cost, high-quality concrete production.

Frequently Asked Questions About HZS60 Concrete Batching Plant

What is a CP 60 batching plant?

A “CP 60” concrete batching plant typically refers to a plant with a rated production capacity of about 60 cubic meters per hour. Its theoretical capacity is approximately 60m³/h.

“Theoretical output” refers to production under ideal conditions; actual output may be lower due to on-site factors, mix complexity, downtime, and other variables.

Can the standard JS1000 mixer and PLD1600 batching machine be upgraded?

Yes, upgrades are possible. The mixer can be replaced with JS1500 (1.5m³ per batch), and the batching machine can be upgraded to PLD2000. However, after upgrading, the mixer power and conveying system must be matched accordingly, which increases cost.

Which is better for aggregate conveying—belt conveyor or skip hoist? What are their advantages?

Belt conveyors are suitable for sites with ample space, offering high conveying efficiency (80m³/h) and simple maintenance. Skip hoists take up less space and are suitable for limited-site projects, but they have slower feeding speeds and more wear on the hopper.
