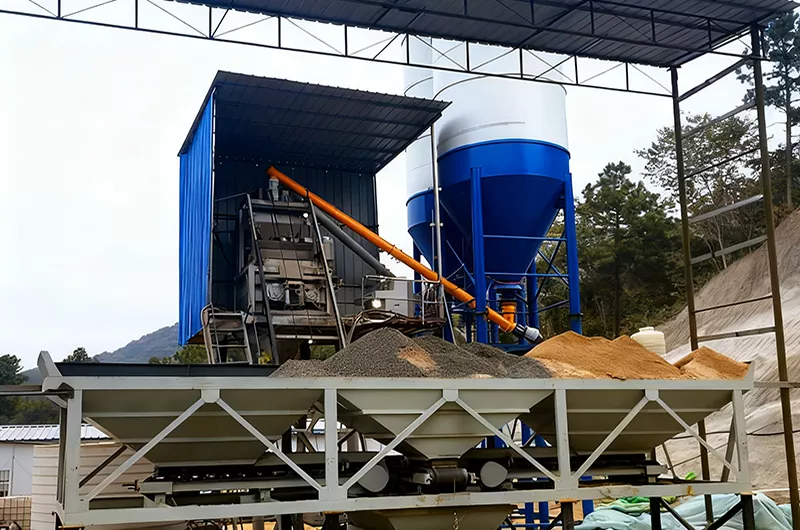

The HZS35 Concrete Batching Plant is a technically mature, reliable, and economically practical stationary concrete mixing equipment. It achieves a good balance between investment cost, site area, and production efficiency, making it an ideal choice for many small and medium-sized construction projects and startup concrete enterprises.
The HZS35 Concrete Batching Plant has a concrete output of approximately 35 cubic meters per hour. It features a compact structure and high efficiency. It is suitable for small and medium-sized construction projects, road and bridge construction, as well as precast concrete plants. This batching plant typically uses a JS750 mixer and a PLD1200 batching machine, fed via a hopper, and is equipped with an electronic control system for automated operation.
Advantages of HZS35 Concrete Batching Plant
- Low investment cost: Compared to large batching plants (such as HZS90, HZS120), the purchase and installation cost of HZS35 is lower, making it very suitable for projects with limited budgets.
- Small footprint: Compact structure, low site requirements, easy to plan and construct.
- Quick installation and dismantling: Adopts a modular design, with most components prefabricated in the factory, making on-site installation and subsequent relocation convenient.
- High degree of automation: Although it is a small model, it is fully capable of automatic control, precise measurement, stable production efficiency, and requires fewer operators.
- Flexible application: Can be used as a stationary batching plant or designed as a mobile or trailer-type batching plant, offering strong adaptability.
Features of HZS35 Concrete Batching Plant
- Capacity: approximately 35 cubic meters per hour.
- Equipment: Includes JS750 twin-shaft compulsory mixer, PLD1200 aggregate batching machine, cement silo, screw conveyor, and electronic weighing control system.
- Feeding: Hopper feeding. Structure: fixed modular design for easy installation and dismantling.
- Control: Equipped with PLC+PC control system, enabling automated operation and storing multiple concrete mix recipes.
Parameters of HZS35 Concrete Batching Plant
| Specification | Value |
| Productivity(m3/h) | 35 |
| Capacity of Mixer(m3) | 0.75 |
| Mixer Power(kw) | 18.5 |
| Discharge Height(m) | 3.8(for customers choice) |
| Aggregate Bin(Quantity) | 3 |
| Aggregate Bin Capacity(m3) | 1.2 |
| Max.Weighing Value of Aggregate(kg) | 850 |
| Max.Weighing Value of Cement(kg) | 500 |
| Max.Weighing Value of Water(kg) | 300 |
| Max.Weighing Value of Additive(kg) | 30 |
| Aggregate Measuring Accuracy(%) | 2 |
| Water Measuring Accuracy(%) | 1 |
| Cement Measuring Accuracy(%) | 1 |
| Additive Measuring Accuracy(%) | 1 |
| Cement Silo(-) | Optional |
| Cement Screw Conveyor(-) | Optional |
| Cement Silo Capacity(-) | Optional |
| Control Mode(-) | Optional |
Components of HZS35 Concrete Batching Plant
A standard HZS35 batching plant typically consists of the following core systems:
Mixing System:

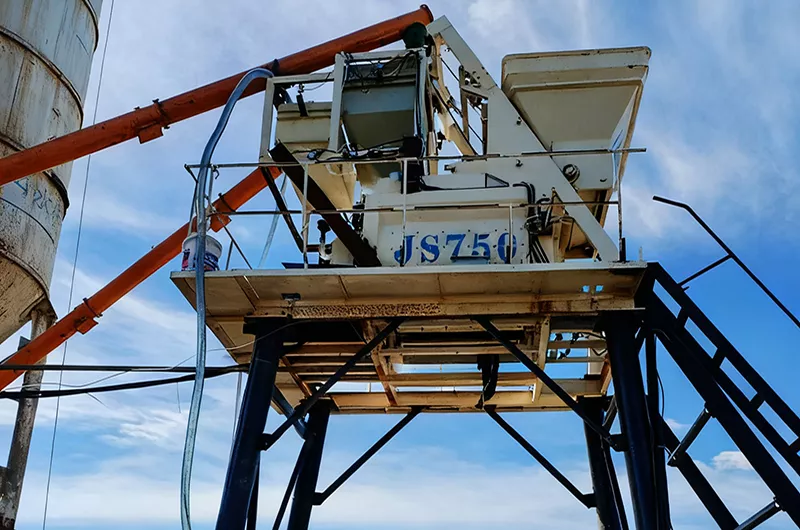

Main mixer: Usually a JS750 twin-shaft compulsory mixer. This is the core of the batching plant, responsible for uniformly mixing aggregates, powders, water, and additives into concrete. JS750 indicates a discharge capacity of 0.75 cubic meters per batch, with a cycle time of about 72 seconds per batch, resulting in a theoretical hourly output of 35 m³/h.
Material Batching System:
Aggregate batching machine: Typically a PLD1200 (or PLD1600) concrete batching machine. It includes 2-4 aggregate bins (for storing sand, stone, etc.), each equipped with a weighing hopper, and sensors precisely control the proportion of each aggregate.
Material Conveying System:
Aggregate conveying: Mainly in two forms:
- Belt conveyor: The most commonly used method, smoothly and efficiently transporting the batched aggregates to the temporary hopper above the main mixer.
- Hopper elevator: Used in some space-limited or mobile plants, lifting the hopper via a winch.
Powder conveying:
- Cement silo: Usually equipped with 1-2 vertical cement silos of 50 or 100 tons, used to store cement, fly ash, etc.
- Screw conveyor: Connects the cement silo to the powder weighing hopper, transporting the powder to the designated location via rotating screw blades.
Weighing System:
Aggregate scales, powder scales, water scales, and additive scales. All use high-precision sensors and are automatically controlled by the system to ensure that the proportions of all materials fully meet the concrete mix design requirements.
Control System:
The "brain" of the entire batching plant. Modern HZS35 plants usually adopt a fully automated computer control system, equipped with an industrial computer and professional control software. Operators only need to input the mix recipe, and the system automatically completes the feeding, batching, mixing, and discharging process, with functions for data storage and report printing.
Applications of HZS35 Concrete Batching Plant
- Construction: Suitable for small and medium-sized projects, such as buildings, roads, bridges, and dams.
- Commercial concrete: Can be used as a commercial concrete batching plant, producing high-quality concrete for sale.
- Precast components: Suitable for precast concrete component factories.
- Small and medium-sized hydraulic engineering
- Auxiliary works for highways and bridges and small projects
- Precast component factories
- Rural and urban construction
- Small commercial concrete batching plants
- Various industrial and civil construction sites
Concrete Batching Plant Selection Recommendations
Demand Matching
- For frequent relocation, prioritize models with a modular design.
- For high environmental requirements, custom enclosed mixing towers and efficient dust removal systems can be used.
Configuration Optimization
- Powder silos: It is recommended to configure 2-3 silos of 100 tons to reduce silo change frequency.
- Control system: Prefer models with remote monitoring functions for easier production management.
With its moderate capacity, flexible configuration, and lower cost, the HZS35 Concrete Batching Plant has become the preferred equipment for small and medium-sized projects. Its modular design and efficient mixing performance make it excellent for both field construction and urban projects. When selecting a model, users should consider project scale, environmental requirements, and budget, and comprehensively evaluate the brand, configuration, and after-sales service to achieve the best return on investment.
Haomei HZS35 Concrete Batching Plant Customer Cases
-

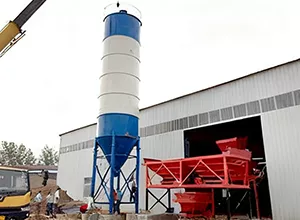

JS750 Mixer-Integrated HZS35 Concrete Batching Plant Operated in Saudi Arabia
-

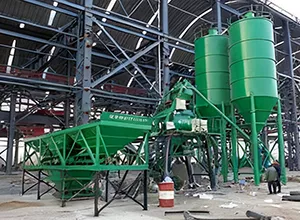

HZS35 Concrete Batching Plant in the Philippines
-
HZS35 Concrete Batching Plant in Ethiopia
-
HZS35 Concrete Plant Installed in Nepal Using JS750 Mixer
-

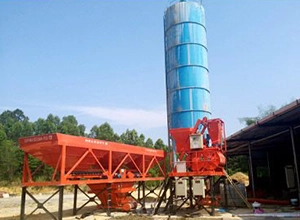

JS750-Powered HZS35 Concrete Batching Plant Delivered to Peru
