How to Choose the Right Concrete Batching Plant Model?

Choosing the right concrete batching plant model requires considering multiple factors to ensure it meets project requirements, economic benefits, and long-term operational feasibility.

Selecting the appropriate concrete batching plant model is not just about choosing a "mixer," but selecting a complete production system.

To choose the right concrete batching plant model, consider your production needs, project scale, and site conditions to determine suitable capacity and mobility (stationary or mobile). You should also evaluate your budget, level of automation, required concrete type (wet or dry mix), as well as the plant’s design quality and after-sales support.

Concrete Batching Plant Production Capacity

During peak construction periods, how many cubic meters of concrete do you need to supply per hour? This directly determines the choice of model (such as HZS90, HZS120, etc.).

• Estimate total output: Calculate the total volume required and peak demand to determine the necessary hourly output.
• Match hourly output: Choose a plant whose theoretical hourly output slightly exceeds your required output to accommodate actual operating conditions.
• Plan for the future: If you anticipate business growth, consider a plant with higher capacity to meet larger project demands.

Concrete Project Scale Types

• Large hydraulic, highway, and bridge projects: High and continuous demand, typically choose large plants like HZS120, HZS180, HZS240.
• Ready-mix concrete companies: Serving multiple sites with fluctuating demand, it is recommended to choose HZS90, HZS120, HZS180, balancing efficiency and flexibility.
• Medium and small sites, precast factories: Stable but moderate demand, HZS60 and HZS75 are good choices.
• Short-term or mobile projects: Consider mobile batching plants for easy relocation and disassembly.

Concrete Batching Plant Equipment Configuration and Automation Level

Feeding Method:

• Skip bucket: Low investment cost, small footprint, but lower efficiency and higher maintenance. Suitable for small plants HZS75 and below.
• Belt conveyor: High efficiency, large output, stable performance, mainstream for modern batching plants. Suitable for medium and large plants HZS90 and above.

Main Mixer Model:

• Forced mixer: Currently the absolute mainstream, good mixing quality, high efficiency, suitable for all types of concrete. Available in JS1000, JS1500, JS2000, etc. (numbers represent discharge volume per batch in liters).
• Note the matching: Plant models usually correspond to mixer capacity, e.g., HZS120 typically uses a JS2000 mixer (2000L = 2 m³, hourly cycle 60 times ≈ 120 m³).

Number and Capacity of Aggregate Bins:

• How many types of aggregates (stone, sand) do you need to store? Usually 3-5 bins are required.
• Bin capacity determines how much raw material can be stored at once, affecting production continuity.

Number and Capacity of Cement Silos:

How many types of cement/fly ash do you use? What is the required storage for each? Typically equipped with 1-3 silos of 100 or 150 tons each.

Control System and Automation Level:

• Semi-automatic: Basic operation, requires more manual intervention.
• Fully automatic: One-key operation, computer control, recipe management, production data recording and printing, greatly improves efficiency and reduces human errors and labor costs. Standard for ready-mix concrete companies.
• Remote monitoring: Advanced feature allowing production status to be monitored remotely via network.

Concrete Batching Plant Mobility and Site Conditions

When choosing a concrete batching plant, the equipment's mobility and site conditions are critical factors, directly affecting construction efficiency and project cost.

• Stationary: Best suited for large, long-term projects and permanent sites. Offers more flexible layout and higher capacity.
• Mobile: Ideal for temporary or frequently relocated projects. Small, compact plants are suitable for hard-to-reach or space-limited areas.

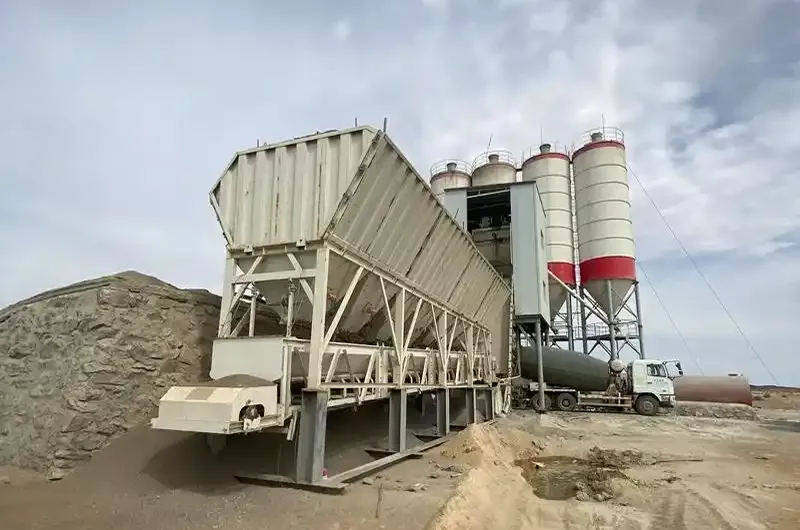

Stationary Concrete Batching Plant

• Suitable project types: Best for large, long-term construction or infrastructure projects, such as industrial parks, large residential complexes, bridges, and hydraulic works.
• Site requirements: Requires stable, permanent construction sites. Typically demands a solid, level foundation to ensure safe operation and mixing accuracy.
• Layout and capacity advantages: More flexible design allows different arrangement of bins, conveying systems, and control rooms according to construction needs, achieving higher production efficiency and larger capacity.
• Investment and usage cycle: Higher initial investment but lower long-term operating costs, suitable for high-output, long-duration projects.

Mobile Concrete Batching Plant

• Suitable project types: Especially suitable for temporary construction projects or sites requiring frequent relocation, such as municipal roads, short-term bridge construction, or remote area projects.
• Site flexibility: Small, compact design facilitates transportation and quick installation, allowing operation even in space-limited or hard-to-access areas.
• Rapid deployment and cost-saving: Equipment can be quickly assembled, disassembled, and relocated without long-term foundation work, saving preparation time and site modification costs.
• Capacity limitations: Compared to stationary plants, mobile plants generally have lower capacity, more suitable for medium and small concrete demand.

Site Constraints and Assessment

When selecting a concrete batching plant type, the site conditions must be fully assessed:

• Available space: Ensure sufficient room for equipment installation and material transportation.
• Transportation convenience: Consider the supply of raw materials (sand, stone, cement) and concrete transportation.
• Foundation stability: Even mobile plants require level and appropriately load-bearing ground to ensure stable operation and concrete quality.
• Environmental factors: Including drainage, dust control, noise, and safety requirements, especially in urban or special environment projects.

Site constraints: When choosing, evaluate available space, transportation convenience, and foundation stability requirements.

Concrete Mixing Types

When choosing a concrete batching plant, the project type, pouring distance, and concrete quality requirements are key factors in deciding between wet or dry mix plants.

Wet Mix Concrete Batching Plant

• Suitable project types: Ideal for large-volume, large-scale construction projects, such as high-rise buildings, bridges, hydraulic projects, and large industrial facilities.
• Production characteristics: Wet mix plants add water directly at the plant, producing uniform and dense concrete, ensuring overall quality and workability.
• Quality advantages: Controllable mixing time and process result in better uniformity and pumpability, especially for projects requiring high strength and durability.
• Construction efficiency: Produced wet concrete can be transported directly to the site via concrete pump trucks or mixers, enabling continuous construction and saving labor and on-site mixing time.
• Limitations: Requires relatively stable transport and construction conditions; equipment investment and maintenance costs are relatively high.

Dry Mix Concrete Batching Plant

• Suitable project types: Suitable for small or medium projects, and sites with limited space or complex conditions, such as temporary roads, remote areas, or temporary infrastructure.
• Production characteristics: Produces dry or semi-dry mix; water is added during transportation to the site.
• Flexibility: Dry mix is compact and easy to transport, requiring less demanding site and transport conditions; can be quickly installed and used in space-limited sites.
• Construction characteristics: Concrete can be poured after adding water on-site, suitable for projects requiring flexible concrete quantities or short construction periods.
• Limitations: Concrete quality is slightly lower than wet mix; requires careful water-cement ratio control during long-distance transport.

Selection Recommendations

• Large-scale, high-quality projects should choose wet mix plants to ensure concrete uniformity and strength.
• Small, flexible, or temporary projects should choose dry mix plants to adapt to complex sites and frequent relocation.
• Pouring distance: For distant sites, wet mix concrete ensures quality; dry mix requires careful water-cement ratio control during long-distance transport.

Other Key Factors

• Budget: Consider total cost, including initial purchase, installation, transport, and potential long-term maintenance.
• Automation: Look for plants equipped with advanced automation systems, such as automatic batching systems, to improve consistency, efficiency, and reduce operational errors.
• Quality and durability: Choose plants built with robust materials and high-quality design to ensure long service life and reduce maintenance requirements.
• Supplier support: Investigate the supplier’s after-sales support, including maintenance, spare parts supply, and technical support.

Concrete Batching Plant Quick Reference Model Table

Haomei Offers 12 Types of Concrete Batching Plants

When choosing the right concrete batching plant model, consider your production capacity and project requirements, along with plant type, mixer type, and automation level, while also taking into account site limitations, budget, and maintenance needs.

Stationary Concrete Batch Plant

Stationary concrete batching plants are usually installed near the construction site and are designed for large-scale projects such as highways, bridges, airports, and large residential areas. This type of plant can provide high output and continuous operation, ensuring stable concrete quality, and is suitable for long-term, large-scale construction projects.

Features:

• High production capacity, suitable for continuous, large-volume concrete supply
• Robust structure, low maintenance cost
• Not suitable for frequent relocation

Mobile Concrete Batching Plant

Mobile concrete batching plants can be quickly installed and dismantled, suitable for short-term projects or use across multiple construction sites. They can provide medium output concrete, ensuring construction efficiency while adapting to different terrains and site conditions.

Features:

• Easy to relocate, short assembly and disassembly time
• Medium output, suitable for medium-sized projects
• Adaptable to various construction environments

Small Concrete Batch Plant

Small concrete batching plants are mainly intended for small construction projects and rural infrastructure. They provide adequate small-batch concrete supply, occupy little space, have low investment cost, are easy to operate, and simple to maintain.

Features:

• Small footprint, low investment cost
• Easy to operate and maintain
• Suitable for small or rural projects

Dry Mix Concrete Batching Plant

Dry mix concrete batching plants measure and mix only dry materials such as aggregates, sand, and cement during production. Water is added during transportation to the construction site. This type of plant has a simple structure, flexible transport, and low investment cost, but requires careful transport and site management, otherwise concrete quality may be affected.

Features:

• Simple structure, flexible transport
• Low investment cost
• High requirements for transport and on-site management

Fully Automatic Concrete Batching Plant

Fully automatic concrete batching plants use advanced PLC control systems to achieve full automation from batching and mixing to discharge. They can precisely control the proportion of various raw materials, ensuring stable concrete quality and reducing labor costs, suitable for high-standard construction projects.

Features:

• High efficiency, saves labor costs
• Precise measurement, stable concrete quality
• Supports remote monitoring and data management

Compact Concrete Batching Plant

Compact concrete batching plants are designed with a small footprint, suitable for space-constrained sites. They provide medium output concrete, are easy to operate, and simple to maintain, meeting the continuous supply needs of small and medium projects.

Features:

• Saves space, flexible installation
• Medium output, meets daily construction needs
• Easy operation and maintenance

Central Mix Concrete Plant

Central mix concrete plants complete all mixing inside the plant before transporting concrete to the construction site. The concrete is uniform and stable, suitable for long-distance transport and large-scale projects, but requires higher transportation time and vehicle requirements.

Features:

• Uniform concrete, stable quality
• Suitable for long-distance transport
• Commonly used for medium and large-scale projects

Ready Mix Concrete Batching Plant

Ready-mix concrete batching plants are designed for market sales, providing standardized concrete with controllable quality. Usually paired with transport vehicles, the concrete is delivered directly to the construction site to ensure freshness and construction efficiency.

Features:

• Standardized production, quality controllable
• Can be delivered directly to the construction site
• Suitable for urban infrastructure and building construction

Portable Concrete Batch Plant

Portable concrete batching plants are lightweight, easy to move, and quick to install, suitable for temporary construction projects or sites with frequently changing conditions. Although output is generally moderate, their flexibility and cost-effectiveness make them ideal for small or medium projects.

Features:

• Rapid relocation, flexible construction
• Low investment cost
• Suitable for temporary and small projects

Precast Concrete Batch Plants

Precast concrete batching plants are designed for producing precast components such as bridge slabs, piles, or factory-produced floor panels. They strictly control concrete proportions and mixing time to ensure strength and uniformity, suitable for industrialized construction and large-scale production.

Features:

• Highly controllable concrete quality
• High efficiency, suitable for factory production
• Suitable for precast component production

Wet Mix Concrete Batch Plant

Wet mix concrete batching plants complete all water addition and mixing within the plant. The concrete can be used immediately after discharge. It provides good uniformity and workability, suitable for long-distance transport and high-quality projects, but equipment and maintenance costs are relatively high.

Features:

• Good concrete uniformity and workability
• Suitable for long-distance transport
• Suitable for high-standard large-scale projects

On-site Concrete Batching Plant

On-site concrete batching plants are installed directly at the construction site, allowing flexible adjustment of concrete output according to construction progress. By reducing transport time, they ensure concrete freshness, making them ideal for large or dispersed sites, and an effective solution for efficient construction and quality control.

Features:

• Reduces transport time, ensures concrete freshness
• Flexible output adjustment according to construction progress
• Suitable for large or dispersed construction sites
